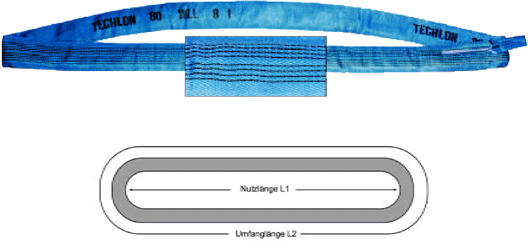

Round sling EN 1492-2 |
![]() |
Double woven protective hose for intense abrasion hardness and long lifetime | |||||||||
Technical | WLL | color code | L1 | bigness | broadness | weight | stock no. | ||
dates | to EN | min. | max. | below load | below load | per lfm L1 | |||
type | (kg) | (m) | (m) | (mm) | (mm) | (kg) | |||
Duplex 1.000 | 1.000 | ![]() |
violett | 0,3 | 40,0 | 4 | 40 | 0,4 | 1340001-L |
Duplex 2.000 | 2.000 | ![]() |
grün | 0,3 | 40,0 | 6 | 50 | 0,6 | 1340002-L |
Duplex 3.000 | 3.000 | ![]() |
gelb | 0,3 | 40,0 | 8 | 60 | 0,9 | 1340003-L |
Duplex 4.000 | 4.000 | ![]() |
grau | 0,5 | 40,0 | 11 | 68 | 1,0 | 1340004-L |
Duplex 5.000 | 5.000 | ![]() |
rot | 0,5 | 40,0 | 13 | 73 | 1,2 | 1340005-L |
Duplex 6.000 | 6.000 | ![]() |
braun | 0,5 | 40,0 | 9 | 80 | 1,5 | 1340006-L |
Duplex 8.000 | 8.000 | ![]() |
blau | 0,5 | 40,0 | 16 | 90 | 1,9 | 1340007-L |
Duplex 10.000 | 10.000 | ![]() |
orange | 0,5 | 40,0 | 15 | 100 | 2,2 | 1340008-L |
L = length (L1) in meters | |||||||||
![]() |
