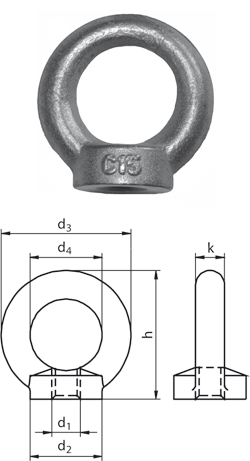

Eye nut acc. to DIN 582
made of C 15E, galvanized
Eye nut acc. to DIN 582 nominal size WLL in d2 d3 d4 h k weight stock no.
d1 straight train (kg) (mm) (mm) (mm) (mm) (mm) (kg)
M 6* 80 20 36 20 36 8 0,05 1230046
M 8 140 20 36 20 36 8 0,05 1230047
M10 230 25 45 25 45 10 0,09 1230048
M12 340 30 54 30 53 12 0,16 1230049
M14 340 35 63 35 62 14 0,24 1230050
M16 700 35 63 35 62 14 0,24 1230051
M18 700 40 72 40 71 16 0,36 1230052
M20 1.200 40 72 40 71 16 0,36 1230053
M22 1.200 45 81 45 81 18 0,58 1230054
M24 1.800 50 90 50 90 20 0,72 1230055
M27 2.500 55 96 53 97 22 0,70 1230056
M30 3.200 65 108 60 109 24 1,32 1230057
M33 3.200 65 108 60 109 24 1,30 1230058
M36 4.600 75 126 70 128 28 2,08 1230059
Larger sizes and different versions are available on request.
* intermediate sizes not comply with DIN
Dimensions and weight specified approximately.
