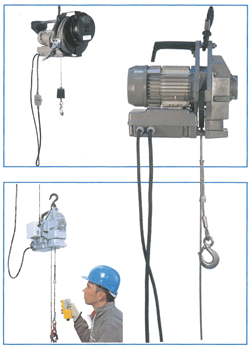

Electric rope hoists Minifor | ![]() |
- Capacity 100kg, 300kg or 500kg - Low weight - Quick installation - Long wire rope length - Easy to use, light-weight, robust, powerful - Available as single phase and three phase model - Alternatively with cable reeling device (max. 40 m), wireless remote control, set of sheave blocks Funkfernbedienung, Umlenkrolle
MINIFORT hoists are used with a Maxiflex wire rope. |
![]() |
|||||||||
type | model | WLL | lifting speed | output | supply | frequenz | rope-ø | capacity | stock no. | |
Voltage | cable drum | |||||||||
(kg) | (m/min) | (kW) | (V) | (Hz) | (mm) | (kg) | ||||
TR 10 1~ | Standard version with pushbutton pendant control (lenght 2.5 m); without rope |
100 | 15 | 0,37 | 230 | 50 | 6,5 | - | 1590022 | |
TR 10 1~ | Version with 0,7 m Control cable incl. coupling; without cable | 100 | 15 | 0,37 | 230 | 50 | 6,5 | - | 1590023 | |
TR 10 1~ | Version with remote control; without rope |
100 | 15 | 0,37 | 230 | 50 | 6,5 | - | 1590024 | |
TR 10 1~ | Version with rewinder; without rope |
100 | 15 | 0,37 | 230 | 50 | 6,5 | 20 27 40 |
1590025 | |
TR 10 1~ | Version with rewinder and remote control (reach ca. 50 m; frequency 433 Mhz); without rope |
100 | 15 | 0,37 | 230 | 50 | 6,5 | 20 27 40 |
1590026 | |
TR 10 1~ | Version with pulleys kit (for cutting in after tackle principle); without rope |
100 | 15 | 0,37 | 230 | 50 | 6,5 | - | 1590027 | |
TR 30 1~ | Standard version with pushbutton pendant control (lenght 2,5 m); without rope |
300 | 5 | 0,37 | 230 | 50 | 6,5 | - | 1590028 | |
