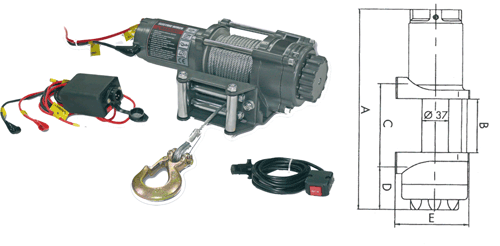

Electric rope winche DV-700 | ![]() |
type | lifting capacity | lifting capacity | drum size | dimensions | motor | rope size | weight | stock no. | ||
1st rope layer | 5th rope layer | A/B/C/D/E | 12 V/24 V | ø x L | without rope | |||||
(daN) | (daN) | (mm) | (mm) | (kW) | (mm/m) | (kg) | 12 V motor | 24 V motor | ||
DV-700 | 700 | 365 | ø 37 x 80 | 314/80/124/65/112 | 1,8/2,4 | 4,8/14 | 9,00 | 1580037 | 1580038 | |
Features: - 12V/24V motor - Overrunning clutch - Electrical rope retraction and output - integrated control unit - Robust aluminium case
Standard accessories: |
![]() |
