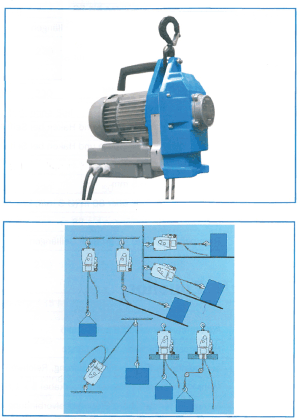

Electric rope hoists Minifor TR125SY
with kernmantle rope
Advantages:
- High speed for raising and lowering the load
- Low weight for use at high altitudes
- Rope is flexible, since it consists of synthetic fiber;
is environmentally friendly and does not oxidize

The Minifor TR 125 is SY an electric cable winch with
Braided rope, which, thanks to its self-locking
Drive system allows any pitch.
The drive system consists of a drive pulley, in the
the Minifor-core rope under the effect of the load and
is clamped by two pressure rollers. A biasing spring
acts on these rollers and provides for the foaming ability of the
Minifor-kernmantel rope without load. About the biasing spring
affects the clamping of Minifor-kernmantel rope on the traction sheave
proportional to the load.

type model WLL speed frequenz rated current weight stock no.
(kg) (m/min.) (Hz) (A) (kg)
TR 125 SY 400 V
TR 125 SY 230 V *
TR 125 SY 230 V *		 with pendant control 2,5 m 125 30
30
15		 50 2,25
6,20
3,90		 19,0
20,0
19,0
 1590029
TR 125 SY 400 V
TR 125 SY 230 V *
TR 125 SY 230 V *		 with 0.3 m control cable and coupling
125 30
30
15		 50 2,25
6,20
3,90		 19,0
20,0
19,0
 1590030
TR 125 SY 400 V
TR 125 SY 230 V *
TR 125 SY 230 V *		 with remote control
pluggable		 125 30
30
15		 50 2,25
6,20
3,90		 19,0
20,0
19,0
 1590031
For those marked with * models, the adapter plugs of CEE is needed to Schoku.
accessories stock no.
pushbutton pendant pluggable, 1.8 m length 1590032
Control cable plug 10 m, with cable pulling grip 1590033
Control cable plug 15 m, with cable pulling grip 1590034
Control cable plug 20 m, with cable pulling grip 1590035
External antenna for remote control 1590036
Carrying case made of plastic 1590037
Carrying case made of metal 1590038
Adapter plug to Schuko CEE 1590039
Kernmantle rope, 20.0 m, diameter 9.4 mm, with eye hooks 1590040
Kernmantle rope, 20.0 m, diameter 9.4 mm, with safety hook 1590041
Kernmantle rope, 20.0 m, diameter 9.4 mm, with swivel hook 1590042
Drum reel made of plastic to 100 m rope 1590043
Drum reel made of plastic to 200 m rope 1590044
Drum reel made of metal to 100 m rope 1590045
Other lengths of Kernmantle rope are available on request.
