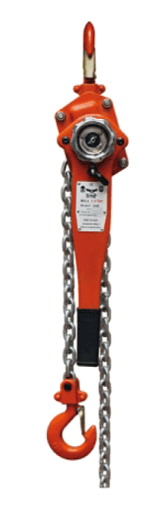

Lever hoist UHZ | ![]() |
![]() |
type | WLL | standrad lift | hook spacing | number of | lever force | chain size | weight | stock no. |
kg) | (m) | min (mm) | chain falls | (kg) | (mm) | (kg) | |||
UHZ 7,5/1,5 | 750 | 1,5 | 321 | 1 | 15 | 6x18 | 7,0 | 1630001 | |
UHZ 15/1,5 | 1500 | 1,5 | 376 | 1 | 23 | 8x24 | 11,0 | 1630002 | |
UHZ 30/1,5 | 3000 | 1,5 | 475 | 1 | 30 | 10x30 | 21,0 | 1630003 | |
UHZ 60/1,5 | 6000 | 1,5 | 495 | 2 | 33 | 10x30 | 31,0 | 1630004 | |
Lever hoists with lifting capacity of 250 kg are possible on request. Other lifts are available on request. |
