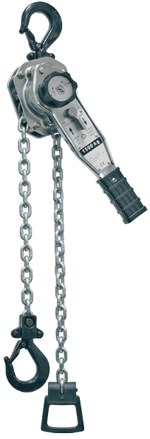

Lever hoist PREMIUM PRO
type WLL standard lift min. headroom number of lever force chain size weight stock no.
(kg) (m) (mm) chain falls (kg) (mm) (kg)
PRO 0,75 750 1,5 320 1 22 5,6x17 7,0 1630005
PRO 1,50 1500 1,5 360 1 24 7,1x21 8,60 1630006
PRO 3,0 3000 1,5 431 1 33 9x27 15,20 1630007
PRO 6,0 6000 1,5 500 2 36 9x27 23,0 1630008
PRO 9,0 9000 1,5 635 3 38 9x27 43,0 1630009
Other lifts are available on request.
Thanks to a significant weight saving, handling is improved. Despite this,
the frame has been strengthended compared to the previous generation.

Free-running mode
When the selection switch is moved to the middle point, the unladen chain
can easily be pulled through the device freely to the required usage length.
This makes tensioning the chein easier.

Load chain
The tempered, galvanised load chain according to DIN EN 818-7-T is supplied with
the unit. The standard lifting height is 1.5 m; any length required for higher lifting is possible.

New chain end piece
The robust chain end piece provides additional safety because it cannot be
pulled through the device with the chain.

Protected handle
The ergonomic rubber handle on the end of the lever protects the user against
injury and is also screwed in place to prevent is slipping.

Technical advantages
Hand lever can be used in any position thanks to the ratchet; safety automatic
mechanical brake; galvanised conneting parts; cast hook clip; lage, non-slip and
closed hand wheel; safety chain end piece.
