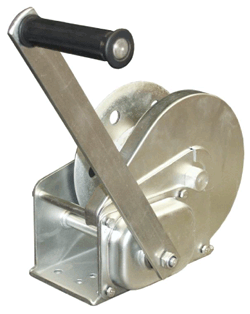

Manual winche TWZ/TWR | ![]() |
The compact REMA TWZ and TWR winches are self locking; they are manufactured out of pressed steel plate to ensure durable strength. These winches are utilized in many areas such as: food industry, maritime sector, poultry breeding, trailer manufacturing etc.
TWZ: Galvanized.
Properties |
![]() |
|||||||||||
type | safe working load | minimum load | cable length | cable diameter | lifting height | Drum width | Gear ratio | Crank length | Crank force | Base size | weight | stock no. |
per stroke | without rope | |||||||||||
(kg) | (kg) | (m) | (mm) | (mm) | (mm) | (mm) | (kg) | (mm) | (kg) | |||
TWZ: Galvanized. | ||||||||||||
TWZ-800 | 370 | 10 | 36 | 4 | 34 | 40 | 4.1:1 | 210 | 14,5 | 138x89 | 3,00 | 1570007 |
TWZ-1200 | 550 | 10 | 23 | 5 | 42 | 48 | 4.1:1 | 210 | 15,0 | 138x89 | 3,30 | 1570008 |
TWZ-1800 | 820 | 15 | 20 | 7 | 49 | 60 | 5.0:1 | 320 | 22,0 | 194x108 | 8,00 | 1570009 |
TWZ-2600 | 1200 | 20 | 18 | 8 | 28 | 75 | 10.0:1 | 320 | 19,0 | 240x127 | 10,30 | 1570010 |
TWR: Stainless steel. | ||||||||||||
TWR-1200 | 550 | 10 | 23 | 5 | 42 | 48 | 4.1:1 | 210 | 15,0 | 138x89 | 3,30 | 1570011 |
TWR-1800 | 820 | 15 | 20 | 7 | 49 | 60 | 5.0:1 | 320 | 22,0 | 194x108 | 8,00 | 1570012 |
TWR-2600 | 1200 | 20 | 18 | 8 | 28 | 75 | 10.0:1 | 320 | 19,0 | 240x127 | 10,30 | 1570013 |
Steel wire rope on request. | ||||||||||||
![]() |
||||||||||||
![]() |
