Electric rope hoist Planeta-BW

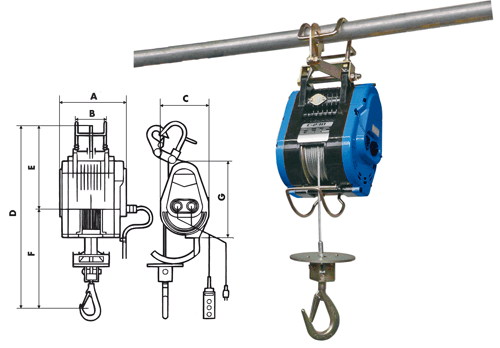

type capacity in all rope lifting speed motor data lifting height rope diameter dimensions (mm) weight stock no.
rope layers with full load (rope lenght) A B C D E F G inkl. Seil
(kg) (m/min) 230 V (m) (mm) (kg)
BW-80 80 18-30 0,8 kW/4 A 23 4,0 200 104 168 605 266 339 270 18,0 1580001
BW-160 160 15-22 1,2 kW/6 A 30 5,0 244 115 182 640 280 360 285 23,0 1580002
BW-230 230 9-14 1,3 kW/6,0 A 24 5,0 244 115 182 640 280 360 285 24,0 1580003
BW-300 300 9-13 1,5 kW/7,5 A 24 5,0 244 115 182 640 280 360 285 25,0 1580004
This small winch is mostly used for house repair, changing of windeows,
lifting cement sachs into the upper floor - just a quick installed tool for many applications
in wich the worker wants to carry loads up to higher floors or levels. They are not allowed to
be used for moving of persons. The BW-rope hoist comes ready for use.
Features:
  • Lightweight and compact design
  • Allows easy installation
  • Automatic upper limit switch. When rope disc touches the
    limit arm, hoisting is automatically stopped
  • Mechanical braking system
  • Sensor arm automatically stops motor if the wire
    rope is completely unwinded
  • Single phase domestic power supply
  • With 5 m power lead and industry plug for your country
  • With 10 m pendant control
  • Wire rope with safety hook
  • 360° weight hook with safety latch
  • Motor rating IP44
  • Heavy duty IP65 waterproof switch with
    emergency stop K613A as option available

Optional with Swivel jib arm, 180°
and 10 m control cable extension.
