Electric rope winch DV-15000 for salvaging of vehicles |
![]() |
type | tensile force | drum | rope size | ratio | planeten- | motor | motor | stock no. | ||||
direct | siez | (ø x L) | gear | 12 V | 24 V | |||||||
simply (daN) | (mm) | (mm/m) | (kW) | (kW) | 12 V motor | 24 V motor | ||||||
DV-15000 | 6800 | ø 89 x 206 | 11/27 | 315:1 | 3 steps | 4,175 | 2,685 | 1580039 | 1580005 | |||

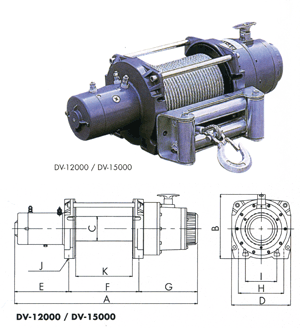

type | dimensions (mm) | weight | ||||||||||
A | B | C ø | D | E | F | G | H | I | J | K | (kg) | |
DV-15000 | 661 | 232 | 89 | 215 | 195 | 254 | 212 | 165,1 | 114,3 | 8xø13 | 206 | 69,0 |
Whether for the salvaging of light vehicles, of heavy SUV or LKW's-for use in commercial or in the agricultural sector this winch is ideal.
Features:
Standard accessories : |
![]() |
