Electric rope winch PLA-B500 | ![]() |
type | WLL | rope speed | rope speed | tension | motor data | lift height | rope-ø | stock no. |
in all rope layers | 1. layer | highest rope layer | -lenght | |||||
(kg) | (m/min) | (m/min) | (m) | (mm x m) | ||||
PLA-B500 | 500 | 12 | 18 | 3-Ph/400V/50Hz | 1,5 kW, 25% ED- S3, FEM 1Am |
58 | 9x60 | 1580006 |

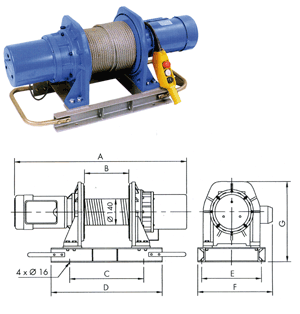

type | dimensions (mm) | weight | ||||||
A | B | C | D | E | F | G | with rope (kg) | |
PLA-B500 | 930 | 240 | 400 | 600 | 325 | 406 | 425 | 120 |
A mobile hoist winch for many applications. Equipped with powerful gear | ||||||||
Ausstattungsmerkmale: - for 3-Ph/400 Volt/50 Hz-threephase - with 10 m control Cable - with 3 m power cable and CEE connector - motor protection class IP 54 - Controller IP 65, water protected, with emergency OFF - rope construktion 6x19, 1770 N/mm² |
![]() |
