Electric rope winch DV-2500i/4500i | ![]() |
type | tensile force | drum size | rope size | ratio | Planeten-gear | motor | motor | stock no. | ||
direct simply | ø x L | 12V | 24V | |||||||
einfach (daN) | (mm) | (mm/m) | (kW) | (kW) | 12 V motor | 24 V motor | ||||
DV-2500i | 1100 | ø54x53 | 4,8/15,2 | 170:1 | 3-stufig | 0,6 | 0,6 | 1580033 | 1580035 | |
DV-4500i | 2000 | ø54x53 | 6,2/15,2 | 170:1 | 3-stufig | 1,20 | 1,20 | 1580034 | 1580036 | |

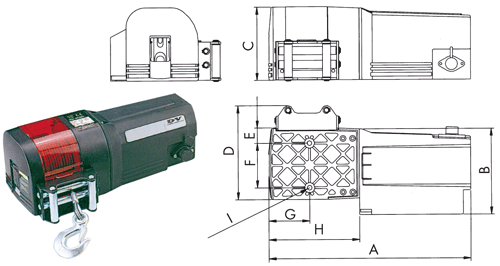

type | Dimensions (mm) | weight | ||||||||
A | B | C | D | E | F | G | H | I ø | with rope (kg) | |
DY-2500i | 423 | 180 | 153 | 197 | 32 | 93 | 86 | 190 | 2xø10 | 17,5 |
DY-4500i | 432 | 180 | 153 | 197 | 32 | 93 | 86 | 190 | 2xø10 | 18,2 |
Features: - 12V/24V motor - Overrunning clutch - Electrical rope retraction and output - integrated control unit - the motor overheating protection - overload brake - Robust plastic housing - hand protection
Standard Accessories: |
![]() |
