Screw clamp WF | ![]() |
WF-clamps. A circular double cam lock method is employed, resulting in a stronger clamping force and ensurring safe work. The circular cams on both sides are supported by hemispherical surfaces, so they apply a clamping force to the suspended lead while rotating according to the load direction. This ensures safe work without slippage occuring. there are two suspension holes, one for vertical suspension and the ether for horizontal suspension, enabling the load to be hoisted in either orientation. Special alloy steel body makes safety factor 8 times.
A circular double cam lock method is employed, resulting in a stronger clamping force and ensuring safe work. |
|||||||||||||||||||||||

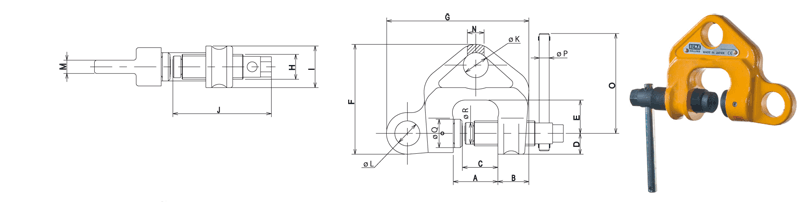

modell | Safe working load | Minimum load | Jaw opening | dimensions (mm) | weight | stock no. | |||||||||||||||||
(t) | Last(t) | (mm) | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R | (kg) | ||
WF-0,5 | 0,5 | 0,1 | 3-28 | 41,0 | 32 | 30,5 | 21 | 33 | 108 | 138 | 24 | 42 | 98 | 25 | 24,5 | 12 | 16 | 120 | 10 | 26 | 21 | 1,50 | 1530042 |
WF-1,0 | 1,0 | 0,2 | 3-40 | 53,5 | 38 | 42,5 | 25 | 40 | 132 | 172 | 30 | 50 | 118 | 30 | 29,5 | 16 | 20 | 120 | 12 | 34 | 26 | 2,90 | 1530043 |
WF-2,0 | 2,0 | 0,4 | 3-45 | 60,0 | 45 | 47,5 | 31 | 41 | 157 | 202 | 36 | 62 | 126 | 34 | 33,0 | 22 | 28 | 150 | 12 | 36 | 29 | 4,90 | 1530044 |
WF-3,0 | 3,0 | 0,6 | 6-49 | 65,5 | 52 | 51,5 | 35 | 44 | 170 | 230 | 42 | 70 | 139 | 35 | 40,5 | 28 | 33 | 160 | 12 | 40 | 36 | 7,20 | 1530045 |
WF-5,0 | 5,0 | 1,0 | 9-53 | 71,0 | 57 | 55,5 | 38 | 46 | 187 | 248 | 48 | 75 | 137 | 40 | 45,0 | 38 | 40 | 180 | 12 | 41 | 36 | 10,0 | 1530046 |
![]() |
|||||||||||||||||||||||
