Horizontal plate lifting clamp CH
Lifting clamps for safe transportation of steel plates in horizontal position.
For hoisting steel plates up to hardness 37 RC (345 HB).

Rated load capacity and size of jaw opening are clearly shown on lifting clamps.
Suitable for lifting non-bending steel plates and transportation them in horizontal position.
These clamps can also be used directly under a traverse squared to them.
Always must be used in pairs.
Low weight and compact design.
Safety factor min 5 x rated load capacity.
Each plate lifting clamp is subject to test load at 2 x rated load capacity.

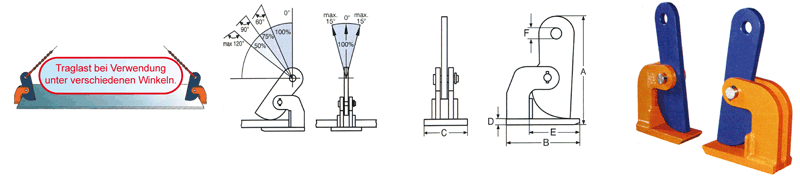

modell Safe working load Jaw opening dimensions (mm) weight stock no.
(kg/per pair) (mm) A B C D E F (kg/Paar)
CH-1,0 1.000 0-35 188 140 65 10 100 25 5,20 1530036
CH-2,0 2.000 0-60 290 180 90 15 115 31 15,00 1530037
CH-4,0 4.000 0-60 306 220 105 25 145 31 26,00 1530038
CH-6,0 6.000 0-60 306 220 110 25 145 31 26,00 1530039
CH-8,0 8.000 0-60 335 225 120 35 135 31 36,00 1530040
CH-10,0 10.000 0-60 335 225 120 35 135 31 40,00 1530041
