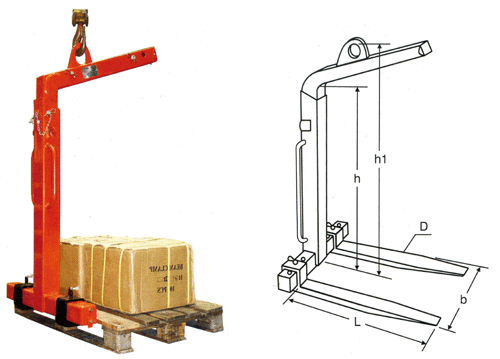

Pallet hook RPHA with automatic balancing |
![]() |
Forks and height are adjustable. The automatic balancing requires a minimum load of 25% of the Safe working load. |
|||||||||||
modell | Safe working load | fork length | construction | usable | ø | fork | fork | weight | stock no. | ||
L | height max. | height | lifting eye | adjustment | LxB | ||||||
(kg) | (mm) | h1 (mm) | h (mm) | öse (mm) | b (mm) | D (mm) | (kg) | ||||
RPHA-1 | 1.000 | 1000 | 1420-1920 | 1100-1600 | 100x80 | 350-900 | 100x30 | 140,00 | 154001 | ||
RPHA-2 | 2.000 | 1000 | 1655-2355 | 1300-2000 | 100x80 | 400-900 | 120x40 | 220,00 | 154002 | ||
RPHA-3 | 3.000 | 1000 | 1720-2420 | 1300-2000 | 120x100 | 450-900 | 120x50 | 280,00 | 154003 | ||
RPHA-5 | 5.000 | 1000 | 1300-2410 | 1300-2000 | 136x120 | 530-1000 | 150x60 | 380,00 | 154004 | ||
![]() |
|||||||||||
