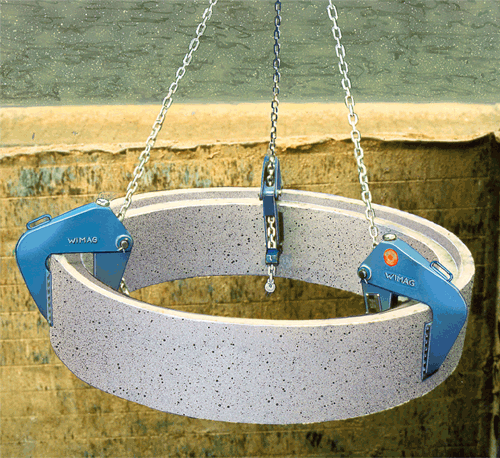

Pipe suspension grab |  |
| type | WLL | number of | contact surface | clamping | manhole Inside | chain | weight | stock no. | |
| clamps | of clamps | clamps | diameter | length | |||||
| (kg) | (Stück) | (mm) | (m) | (m) | (kg) | ||||
| Pipe suspension grabs for manholes acc. DIN 4034 Teil 2: | |||||||||
| RSV 1,5 | 1.500 | 3 | Stahl/gewellt | 40-120 | 0,4-2 | 1,50 | 31,00 | 1560001 | |
| RSVL 1,5 | 1.500 | 3 | steel/serrated | 40 - 120 | 0,4-3 | 2,00 | 33,00 | 1560002 | |
| RSVG 1,5 | 1.500 | 3 | rubber-coated | 0-70 | 0,4-2 | 1,50 | 34,00 | 1560003 | |
| RSV 3 | 3.000 | 3 | steel/serrated | 50-180 | 0,4-2 | 1,60 | 55,00 | 1560004 | |
| RSVL 3 | 3.000 | 3 | steel/serrated | 50-180 | 0,4-3 | 2,20 | 57,00 | 1560005 | |
| RSVG 3 | 3.000 | 3 | rubber-coated | 0-130 | 0,4-2 | 1,60 | 55,00 | 1560006 | |
| RRSV 3/320 | 3.000 | 3 | steel/serrated | 90-230 | 0,4-2 | 1,60 | 54,00 | 1560007 | |
| RSVL 3/230 | 3.000 | 3 | steel/serrated | 90-230 | 0,4-3 | 2,20 | 58,00 | 1560008 | |
| RSVG 3/180 | 3.000 | 3 | rubber-coated | 50-180 | 0,4-2 | 1,60 | 56,00 | 1560009 | |
| RSVE 0,5 | 500 | 1 | steel/serrated | 40-120 | - | 0,80 | 10,00 | 1560010 | |
| RSVE 1 | 1000 | 1 | steel/serrated | 50-180 | - | 0,80 | 17,00 | 1560011 | |
| RSV 1 | 1000 | 2 | steel/serrated | 40-120 | 0,4-2,0 | 1,50 | 21,00 | 1560012 | |
| RSV 2 | 2000 | 2 | steel/serrated | 50-180 | 0,4-2,0 | 1,60 | 33,00 | 1560013 | |
| RSVT 4 | 4000 | 4 | steel/serrated | 50-180 | 1-2,5 | 1,60 | 82,00 | 1560014 | |
| Pipe suspension grabs for manholes acc. DIN 4034 Teil 1 und Teil 2: | |||||||||
| RSV 3/200 D | 3000 | 3 | steel/serrated | 90-200 | 0,4-2,0 | 1,60 | 65,00 | 1560015 | |
| RSVL 3/200 D | 3000 | 3 | steel/serrated | 90-200 | 0,4-3,0 | 2,20 | 69,00 | 1560016 | |
 |
|||||||||
