Vertical plate lifting clamp CS
Lifting clamps for safe transportation of steel plates in vertical position.

Fitted with standard lifting eyes movable in a single direction.
Even in initial position, the safety lock exerts force on plates by
means of a spring so that they may not drop out of the clamps.
For hoisting steel plates up to hardness 37 RC (345 HB).
Rated load capacity and size of jaw opening are clearly shown on lifting clamps.
Suitable for lifting steel plates, rotating them by 180° and transportation them in vertical position.
Safety factor min 5 x rated load capacity.
Each lifting clamps is subject to test load at 2 x rated load capacity.

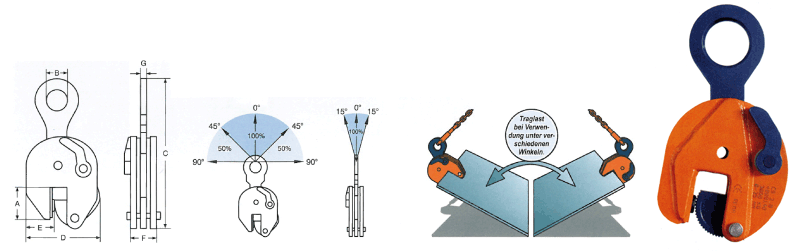

modell Safe working load Jaw opening dimensions (mm) weight stock no.
(kg) (mm) A B C D E F G (kg)
CS-0,75 750 0-13 47 30 205 100 35 37 10 1,50 1530016
CSE-1,0 1.000 0-25 55 45 265 142 38 47 15 3,30 1530017
CS-1,5 1.500 0-20 80 65 335 165 55 56 17 6,30 1530018
CS-2,0 2.000 0-35 80 65 335 185 55 56 17 6,50 1530019
CS-3,0 3.000 0-35 80 65 335 185 55 56 17 7,00 1530020
CS-4,0 4.000 0-45 85 70 430 230 60 78 20 16,00 1530021
CS-6,0 6.000 0-50 114 75 490 255 78 78 20 20,0 1530022
CS-9,0 9.000 0-55 112 75 530 267 70 86 20 26,00 1530023
CS-12,0 12.000 0-52 148 85 617 295 100 94 44 42,00 1530024
CS-15,0 15.000 0-75 159 86 760 375 135 105 50 71,00 1530025
