Universal plate lifting clamps CU
Lifting clamips fitted with universal lifting eye for safe transportation of steel plates in vertical position.

Equipped with a universal lifting eye movable in two directions.
Even in initial position, the safety lock exerts force on plates by
means of a spring so that they may not drop out of the clamps.
For hoisting steel plates up to hardness 37 RC (345 HB).
Rated load capacity and size of jaw opening are clearly shown on lifting clamps.
For lifting steel plates, rotating them 180° and transportation them in vertical position.
Safety factor min.
5 x rated load capacity.
Each plate grip is subject to test load at 2 x rated load capacity.

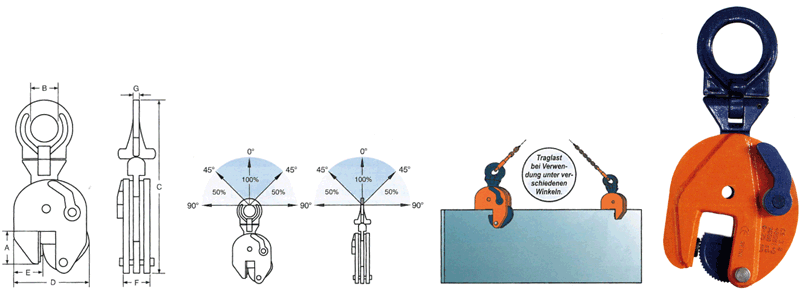

modell Safe working load Jaw opening dimensions (mm) weight stock no.
(kg) (mm) A B C D E F G (kg)
CU-0,75 750 0-13 47 30 203 100 35 37 10 1,70 1530026
CUE-1,0 1.000 0-25 55 50 295 142 38 47 14 3,90 1530027
CU-1,5 1.500 0-20 80 70 370 165 55 56 16 7,00 1530028
CU-2,0 2.000 0-35 80 70 370 185 55 56 16 7,30 1530029
CU-3,0 3.000 0-35 80 70 370 185 55 56 16 8,00 1530030
CU-4,0 4.000 0-45 85 70 430 230 60 78 20 17,00 1530031
CU-6,0 6.000 0-50 114 78 527 255 78 78 32 22,0 1530032
CU-9,0 9.000 0-55 112 78 565 267 70 86 45 30,00 1530033
CU-12,0 12.000 0-52 148 85 650 295 100 94 48 44,00 1530034
CU-15,0 15.000 0-76 159 85 765 373 136 106 48 75,00 1530035
