ASS Threaded jaw, Maxi type
machined or welded

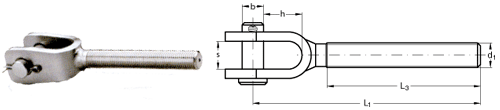

-machined
ASS Threaded jaw, Maxi type machined
nominal size L1 L3 h s b min. breaking load* stock no.
d1 mm mm mm mm mm kg right hand thread left hand thread
M20 219,5 125 35,5 20 19 13.000 371522020 371523020
M22 216 140 38,0 22 22 17.000 371522022 371523022
M24 255 170 39,3 25 25 20.000 371522024 371523024
M27 274 180 41,0 30 28 25.500 371522027 371523027
M30 316 200 51,0 35 32 31.000 371522030 371523030
M36 334 220 49,5 35 35 43.000 371522036 371523036
* These figures are breaking load limits not working load limits.

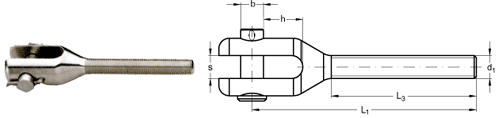

-welded
ASS Threaded jaw, Maxi type welded
niminal size L1 L3 h s b min. breaking load* stock no.
d1 mm mm mm mm mm kg right hand thread left hand thread
M20 193 120 41,0 24 19,0 13.000 371520020 371520020
M22 224,5 140 46,5 30 22,0 17.000 371520022 371520022
M24 258 170 49,3 25 25,4 20.000 371520024 371520024
* These figures are breaking load limits not working load limits.
All terminals are delivered with right hand thread unless specified otherwise.
