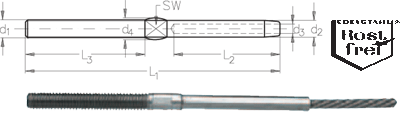

NIRO Threaded terminal, Standrad type |
|
 |
|||||||||||
 |
|||||||||||
| rope-ΓΈ | thread | d2 | d3 | d4 | L1 | L2 | L3 | SW | stock no. | ||
| mm | d1 | mm | mm | mm | mm | mm | mm | mm | right hand thread | left hand thread | |
| 2,5 | M5 | 5,4 | 2,7 | 6,5 | 86 | 35 | 40 | 4 | 301010005 | 301011005 | |
| 3 | M6 | 6,3 | 3,3 | 7,0 | 97 | 38 | 48 | 5 | 301010006 | 301011006 | |
| 4 | M8 | 7,5 | 4,3 | 8,5 | 115 | 45 | 54 | 6 | 301010008 | 301011008 | |
| 5 | M10 | 9,0 | 5,3 | 10,5 | 128 | 52 | 61 | 7 | 301010010 | 301011010 | |
| 6 | M12 | 12,5 | 6,3 | 13,5 | 162 | 63 | 79 | 10 | 301010012 | 301011012 | |
| 7 | M14 | 14,2 | 7,3 | 15,0 | 178 | 70 | 90 | 12 | 301010014 | - | |
| 8 | M16 | 16,0 | 8,3 | 17,0 | 214 | 80 | 102 | 14 | 301010016 | 301011016 | |
| 10 | M20 | 17,8 | 10,5 | 18,5 | 215 | 90 | 105 | 15 | 301010020 | 301011020 | |
| All terminals are delivered with right hand thread unless specified otherwise. | |||||||||||
