Eye terminal

info

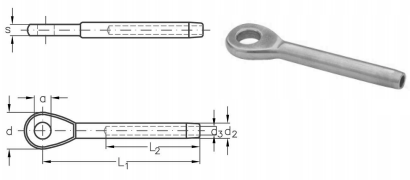

NIRO Eye terminal, Standard type
NIRO Eye terminal, Standard type
rope-ø d2 d3 L1 L2 a s stock no.
mm mm mm mm mm mm mm
3 6,3 3,3 55 38 6,5 5,0 301025003
4 7,5 4,3 65 45 8,5 6,0 301025004
5 9,0 5,3 79 52 10,0 7,0 301025005
6 12,5 6,3 94 63 12,5 8,0 301025006
7 14,2 7,3 105 70 12,5 9,0 301025007
8 16,0 8,3 124 80 14,5 10,0 301025008
10 17,8 10,5 144 90 16,0 12,0 301025010
12 20,0 12,5 160 105 19,3 14,5 301025012

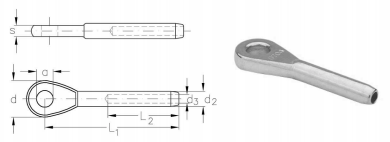

ASS Eye terminal, Mini type
ASS Eye terminal, Mini type
rope-ø d2 d3 L1 L2 a s stock no.
mm mm mm mm mm mm mm
3 6,3 3,3 40 18 6,5 5 311025003
4 7,5 4,3 52 24 8,5 6 311025004
5 9,0 5,3 62 30 9,5 7 311025005
6 12,5 6,3 75 36 13,0 8 311025006
