ASS Screw terminal, Mini type
got self assembly
info

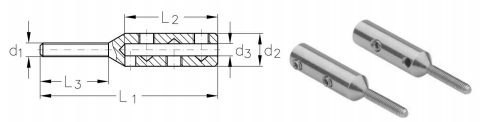

ASS Screw terminal, Mini type
with outside thread for self assembly

ASS Screw terminal, Mini type, with outside thread

rope-ø thread d2 d3 L1 L2 L3 stock no.
mm d1 mm mm mm mm mm right hand thread left hand thread
2 M4 8 2,4 50 25 20 331010002 331012002
3 M4 10 3,5 56 32 20 331010003 331012003
4 M5 12 4,5 65 34 25 331010004 331012004

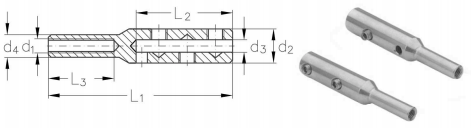

ASS Screw terminal, Mini type
with internal thread

ASS Screw terminal, Mini type with internal thread

rope-ø thread d2 d3 d4 L1 L2 L3 stock no.
mm d1 mm mm mm mm mm mm right hand thread left hand thread
2 M4 8 2,4 6 50 25 20 331210002 331212002
3 M4 10 3,5 6 56 32 20 331210003 331212003
4 M5 12 4,5 8 65 34 25 331210004 331212004

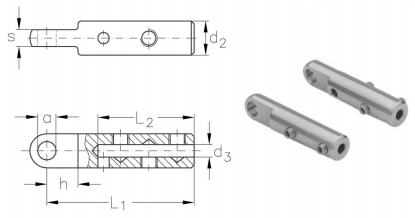

ASS Screw terminal, Mini type
With eye

ASS Screw terminal, Mini type With eye

rope-ø d2 d3 L1 L2 a s h stock no.
mm mm mm mm mm mm mm mm
2 8 2,4 37 25 4,5 4 9 331310002
3 10 3,5 43 32 5,5 5 11 331310003
4 12 4,5 52 34 6,5 6 11 331310004

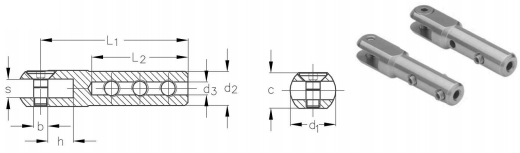

ASS Screw terminal, Mini type
with jaw

ASS Screw terminal, Mini type with jaw

rope-ø c d1 d2 d3 L1 L2 s h b stock no.
mm mm mm mm mm mm mm mm mm
2 10,0 12 8 2,4 37 25 4,5 7 M4 331410002
3 10,5 13 10 3,5 50 32 5,5 9 M4 331410003
4 12,5 16 12 4,5 52 34 6,5 9 M5 331410004

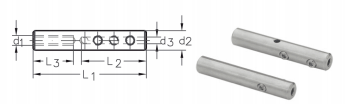

ASS Screw terminal with right hand thread
ASS Screw terminal with right hand thread

rope-ø d1 d2 d3 L1 L2 L3 stock no.
mm mm mm mm mm mm
3+4 M6 12 4,5 70 40 25 331510004
