ASS Jaw terminal for self assembly
| ropw-ø |
L1 |
L2 |
h |
s |
b |
stock no. |
| mm |
mm |
mm |
mm |
mm |
mm |
|
| 3 |
28 |
29 |
14 |
4,8 |
5 |
331610003 |
| 4 |
31 |
31 |
9 |
7 |
6 |
331610004 |
| 5 |
37 |
36 |
12 |
8 |
8 |
331610005 |
| 6 |
39 |
49 |
14 |
10 |
8 |
331610006 |
| 8 |
49 |
47 |
17 |
12 |
10 |
331610008 |
| 10 |
55 |
64 |
15 |
11 |
12 |
331610010 |
| 12 |
72 |
75 |
23 |
18 |
19 |
331610012 |
|

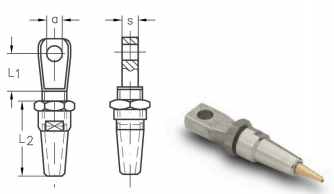

ASS Eye terminal for self assembly
| rope-ø |
L1 |
L2 |
a |
s |
stock no. |
| mm |
mm |
mm |
mm |
mm |
|
| 3 |
21 |
29 |
5 |
5 |
331620003 |
| 4 |
22 |
31 |
6 |
7 |
331620004 |
| 5 |
36 |
36 |
8 |
8 |
331620005 |
| 6 |
36 |
50 |
11 |
9 |
331620006 |
| 8 |
27 |
47 |
15 |
11 |
331620008 |
| 10 |
40 |
64 |
16 |
11 |
331620010 |
| 12 |
44 |
75 |
19 |
19 |
331620012 |
|
ASS Threaded terminal with outside right hand thread for self assembly
| rope-ø |
d1 |
L1 |
L2 |
stock no. |
| mm |
|
mm |
mm |
|
| 3 |
M6 |
40 |
29 |
331710003 |
| 4 |
M8 |
50 |
31 |
331710004 |
| 5 |
M10 |
66 |
36 |
331710005 |
| 6 |
M12 |
72 |
49 |
331710006 |
|

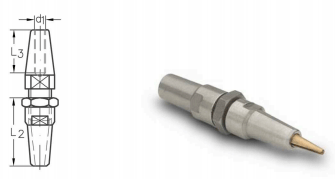

ASS Threaded terminal with internal right hand thread for self assembly
| rope-ø |
d1 |
L2 |
L3 |
stock no. |
| mm |
|
mm |
mm |
|
| 3 |
M5 |
29 |
15 |
331720003 |
| 4 |
M6 |
31 |
15 |
331720004 |
| 5 |
M8 |
36 |
20 |
331720005 |
| 6 |
M8 |
49 |
20 |
331720006 |
