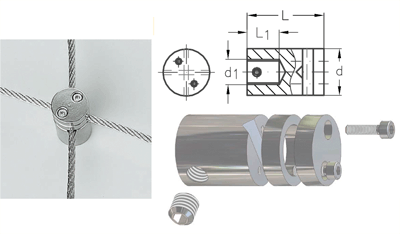

AASS Cross-over clip
with connection to the wall M12
nominal size
marking
rope-ø
d1
d
L1
L
stock no.
mm
mm
mm
mm
4
\/
3+4
M12
22
15
36
341018004
6
\_/
5+6
M12
22
15
38
341018006
Shall be used for rope cross-over at any angle.
The fixing on the wall is done by using a threaded rod M12.
