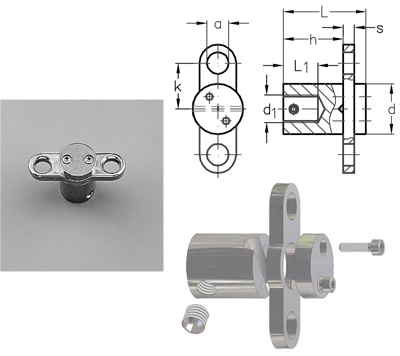

ASS Cross-over clip with connection to the wall M12 and two eye connectors
nominal size
rope-ø
d1
d
L1
L
s
k
h
a
stock no.
mm
mm
mm
mm
mm
mm
mm
mm
6
3-6
M12
22
15
36
6
20
24
9,5
341021006
For ropes in the horizontal and vertical planes with two
eye connectors for additional connections. The fixing on the
wall is done by using a threaded rod M12.
