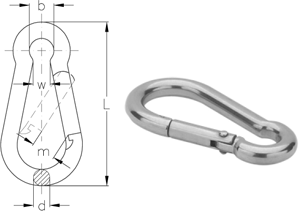

NIRO Snap hook |
|
 |
|||||||
| nominal size | b | d | L | m | w | stock no. |
| mm | mm | mm | mm | mm | mm | ||
| 50x5 | 8 | 5 | 50 | 7 | 4 | 309200050 | |
| 60x6 | 9 | 6 | 60 | 9 | 5 | 309200060 | |
| 70x7 | 11 | 7 | 70 | 8 | 8 | 309200070 | |
| 80x8 | 12 | 8 | 80 | 9 | 8 | 309200080 | |
| 100x10 | 15 | 10 | 100 | 12 | 10 | 309200100 | |
| 120x11 | 18 | 11 | 120 | 16 | 11 | 309200120 | |
| 140x12 | 21 | 12 | 142 | 23 | 17 | 309200140 | |
