Rigging Screw with
terminal and terminal
info

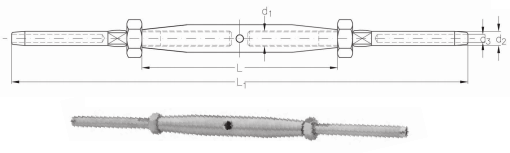

NIRO Rigging Screw with terminal and terminal, Standard type
NIRO Rigging Screw with terminal and terminal, Standard type

rope-ø thread d2 d3 L L1 stock no.
mm d1 mm mm mm mm
2,5 M5 5,4 2,7 80 178 301210005
3 M6 6,3 3,3 95 203 301210006
4 M8 7,5 4,3 105 225 301210008
5 M10 9,0 5,3 125 260 301210010
6 M12 12,5 6,3 150 335 301210012

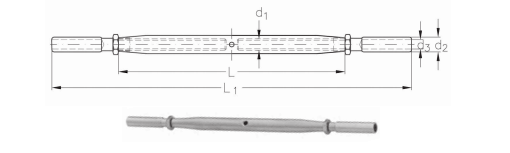

ASS Rigging Screw with terminal and terminal, Mini type
ASS Rigging Screw with terminal and terminal, Mini type

rope-ø thread d2 d3 L L1 stock no.
mm d1 mm mm mm mm
3 M5 6,3 3,3 50 123 311210005
4 M6 7,5 4,3 60 158 311210006
5 M8 9,0 5,3 60 169 311210008
6 M10 12,5 6,3 80 220 311210010

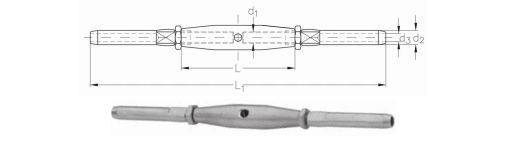

ASS Rigging Screw with terminal and terminal, Super-Mini type
ASS Rigging Screw with terminal and terminal, Super-Mini type

rope-ø thread d2 d3 L L1 stock no.
mm d1 mm mm mm mm
3 M4 5,4 3,3 40 96 321210004
4 M5 6,5 4,3 50 110 321210005
5 M6 7,5 5,3 60 134 321210006
6 M8 9,0 6,3 60 142 321210008

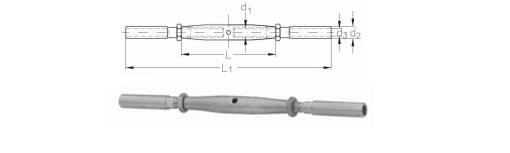

ASS Rigging Screw with terminal and terminal long type, Super-Mini type
ASS Rigging Screw with terminal and terminal long type, Super-Mini type

rope-ø thread d2 d3 L L1 stock no.
mm d1 mm mm mm mm
3 M4 5,4 3,3 80 135 321220004
4 M5 6,5 4,3 100 160 321220005
5 M6 7,5 5,3 120 193 321220006
6 M8 9,0 6,3 120 204 321220008
