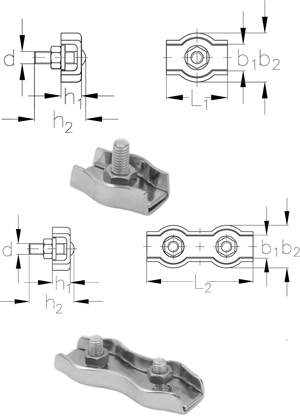

NIRO Simplex/Duplex clip

NIRO Simplex clip single box type with 1 screw
NIRO Duplex clip double box type with 2 screws
NIRO Simplex clip
NIRO Duplex clip
nominal size mm b1 b2 d h1 h2 L1 L2 stock no.
=größter Seil-ø mm mm mm mm mm mm Simplex Duplex
2 4 12 M4 5 14 15 30 309100002 309101002
3 6 14 M4 7 14 17 35 309100003 309101003
4 8 18 M5 7 18 20 40 309100004 309101004
5 10 20 M5 8 18 25 50 309100005 309101005
6 12 24 M6 9 23 30 60 309100006 309101006
8 17 30 M8 13 25 37 75 309100008 309101008
10 21 35 M10 16 32 - 95 - 309101010
